Order Code AV-426

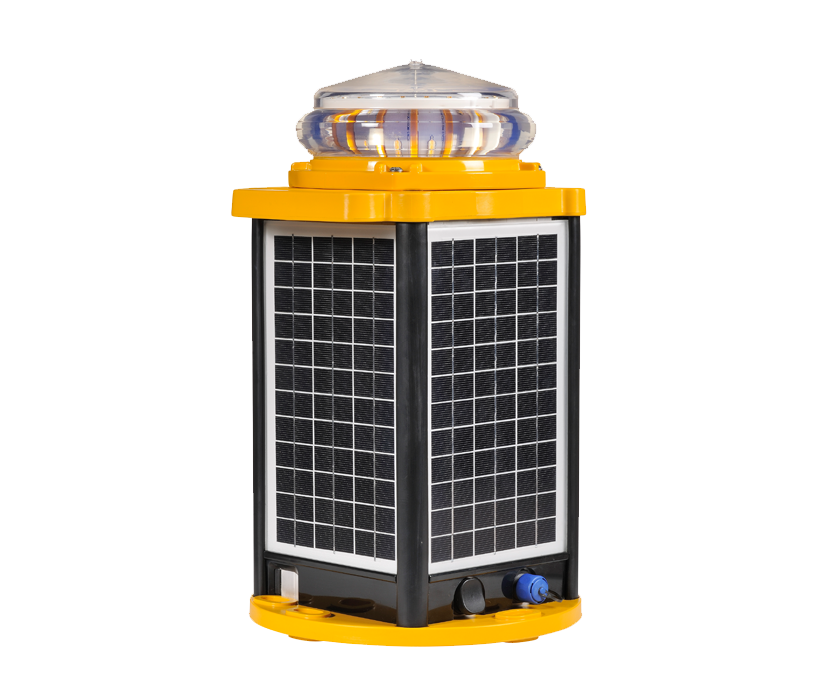

The AV-426 is a next-generation, self-contained solar light specifically designed to survive the harshest environments with minimal ongoing maintenance.
It is a robust, completely self-contained LED solar aviation light designed for a range of aviation applications including permanent approach, runway edge, threshold, helipad aviation lighting. This fully functioning light can be controlled from the tower with no costly cabling or trenching required when fitted with RF.
The AV-426 includes the latest solar technology including active MPPT (maximum power point tracking – maximizing the power extracted from the solar panels) and enhanced optics for improved performance and efficiency with IR available.
It is available in a Compact (C0) or Standard (C1) form factor. Both models have class-leading efficiency and operating runtime.
Features
- Solar-powered, Self-Contained
- FAA or ICAO compliant
- Two chassis heights available – Compact (C0) or Standard (C1)
- Updated Switch and External Interface Port (Charge Port)
- Optional RF Control via AvMesh® RF Network
- Internal antenna removing risk of damaged presented by external devices
- Multiple operating modes – programmable light groups, 3-step intensity adjustment, switchable between visual and IR for tactical operations (where fitted)
Options
- Chassis: Compact (C0) or Standard (C1)
- RF
- IR Output
- Multiple LED configurations
- Yellow or Desert Tan base colours available
Applications
- Runway edge
- Threshold
- REIL
- Sequenced Approach
- Taxiway
- Helipad
Compliance
- Complies to ICAO Annex 14 Volume 1, ‘Aerodrome Design and Operations’, Fourth edition July 2018. Runway Edge – paragraph 5.3.9. (photometrics)
- Complies to FAA AC/150-5345-46E-L861, L861E (High Intensity Mode photometrics)
- Appropriate for ICAO Annex 14 Volume 1, ‘Aerodrome Design and Operations’, Fourth edition July 2018 – Threshold – paragraph 5.3.10, 5.3.11 Threshold Light or End Light Approach – paragraph 5.3.4.1A & B, 5.3.4.8 Simple Approach Lighting System.
